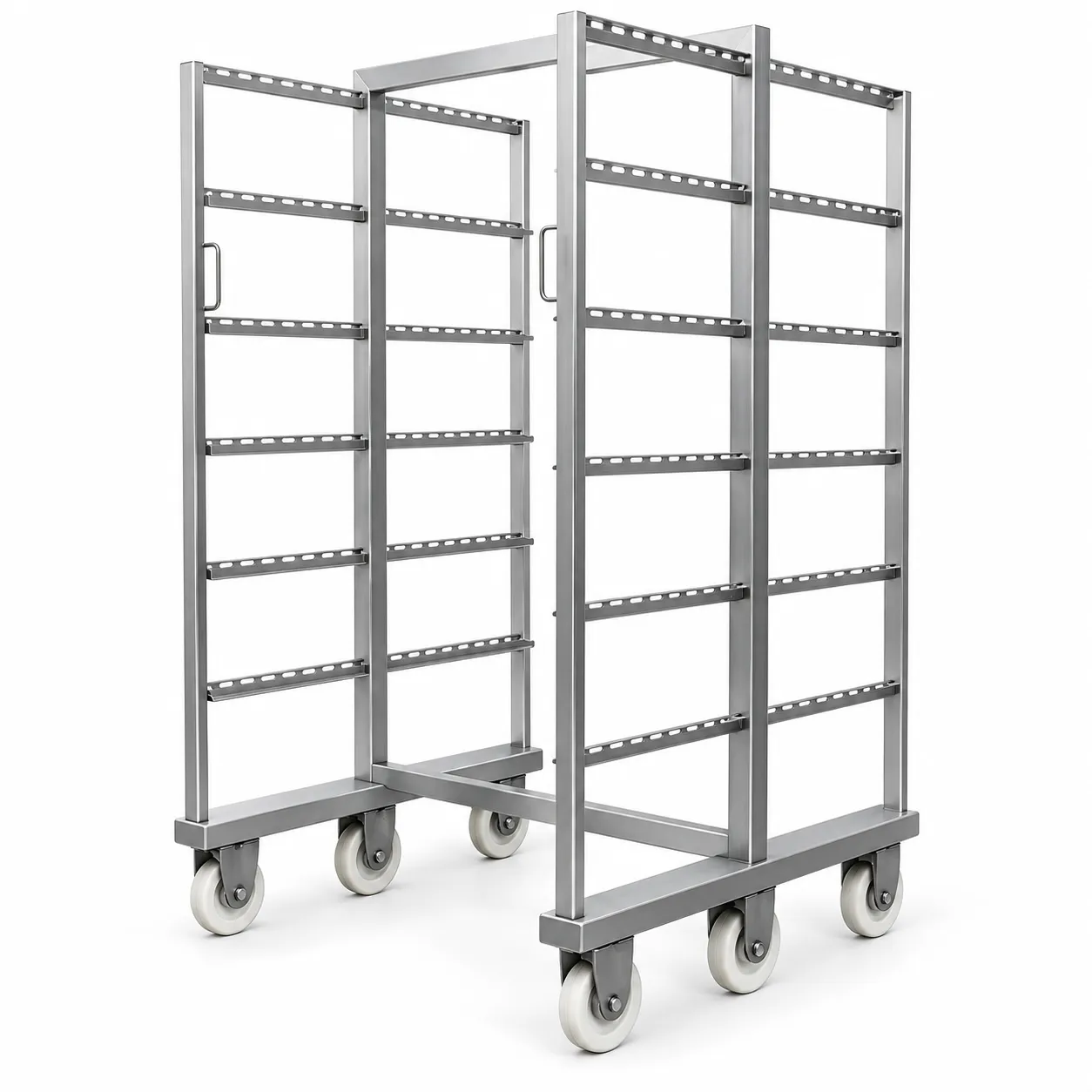

Sausage Hanging Trolley – Smokehouse Loading Cart for Hanging Sausages and Cured Meats

Deskripsi

Spesifikasi Teknis
Application	Sausage, cured meat, and whole-muscle hanging for smokehouse processing
Compatible Smokehouse	QZX250, QZX500, QZX1000, QLH500, QLH1000 (and equivalent chamber sizes)
Frame Dimensions	1,030 × 1,020 × 1,860 mm (standard; custom available)
Frame Material	SUS304 stainless steel throughout
Hanging Bars	Multiple rows; horizontal bar spacing configurable to product dimensions
Max Single-Bar Length	520 mm hanging length per bar side
Bar Drive Power	1.5 kW (rotating bar drive unit, per smokehouse specification)
Castor Type	Heavy-duty swivel castors for smooth loading/unloading
Hygiene Standard	Food-grade; stainless steel contact surfaces
Customisation	Bar spacing, bar count, and overall frame dimensions on request

The Sausage Hanging Trolley: Smokehouse Loading in One Roll

Loading a smokehouse efficiently is not just a matter of placing product on hanging bars. It is a logistical and engineering challenge: hung product must be uniformly spaced for even smoke and heat exposure, the loading operation must be fast enough to maintain throughput targets, and the structure holding the product must withstand the thermal, chemical, and humidity stresses inside a smokehouse chamber operating at up to 85°C with smoke and steam present.

The sausage hanging trolley addresses all three requirements simultaneously. Product is loaded onto the trolley bars at the production area — a task that can run in parallel with the preceding smokehouse cycle — and when the chamber opens, the fully loaded trolley rolls in on its castors in a single 60-second operation. There is no individual bar-loading step inside the chamber, no waiting for operators to position each link, and no risk of uneven distribution from hurried manual placement. The trolley structure is designed to interface precisely with the floor guide rails built into our QZX and QLH smokehouse series, ensuring accurate position and consistent airflow patterns on every cycle.

Frame Construction and Material Specification

The trolley frame is fabricated entirely from SUS304 stainless steel to the same material specification as the smokehouse chamber interior. This is not incidental: the trolley spends the full duration of each cook cycle inside an environment where temperature reaches 85°C, relative humidity can exceed 90%, and smoke condensates and steam vapour are present continuously. Carbon steel or lower-grade alloys would corrode within a few operating cycles under these conditions.

• SUS304 stainless throughout: Frame uprights, cross-members, horizontal hanging bars, and castor mounting brackets are all SUS304 grade, providing consistent corrosion resistance across the full operating temperature and humidity range.
• Open frame design: The trolley structure is open on all four sides, allowing unobstructed smoke and heat circulation around every hanging product. This is the critical design requirement for colour uniformity, even cooking, and consistent smoke deposition.
• Horizontal hanging bars: Multiple rows of horizontal bars run the full width of the trolley frame. Standard bar spacing suits sausage links in the 20–120 mm diameter range; wider or narrower spacing is available on request for whole-muscle products or thin strips.
• Precision floor guide compatibility: The trolley wheelbase is matched to the floor guide rails integrated into our smokehouse chamber floors, providing smooth insertion and extraction without operator alignment effort.
• Heavy-duty swivel castors: High-load-rated swivel castors allow single-operator manoeuvring from the production loading area to the smokehouse chamber entrance, even when the trolley is fully loaded.

Loading Technique: Achieving Uniform Smoke and Cook Results

The technical quality of the finished product — colour uniformity, cook consistency, smoke deposition evenness — is directly affected by how the trolley is loaded. Overcrowded or unevenly distributed product obstructs airflow, creating zones of uneven smoke exposure and potential cold spots in cooked-product applications. The following loading principles apply to all product types:

• Maintain product-to-product clearance: Each sausage link or meat piece should hang freely without touching adjacent items. A minimum gap of one product diameter on all sides is the standard guideline for sausage-style products.
• Load bars from bottom to top: Fill lower bars before upper bars to keep the trolley centre of gravity low, improving rolling stability and reducing tip-over risk on partially loaded trolleys.
• Symmetric left-right loading: Distribute products evenly across both sides of each bar. Lateral imbalance causes binding in the chamber floor guides during insertion.
• Match product length to bar row spacing: Long products such as full-length salami sticks or whole-muscle hams must not contact the bar row below. Choose the correct bar row for the product’s hanging length.
• Verify clearances before first use: For unusual product geometries, confirm that the loaded trolley clears the smokehouse chamber door frame and any internal sensors before the first production run.

Trolley Count Planning: Continuous Smokehouse Operation

Smokehouse throughput is maximised when the chamber is never idle waiting for product. Achieving continuous operation requires a trolley rotation system: one trolley inside the chamber completing the cook cycle, one loaded and waiting at the chamber entrance, and one being unloaded and reloaded at the production area. This three-trolley minimum per smokehouse chamber eliminates the dead time that occurs when only one trolley is available and the loading and unloading steps must wait for the chamber to cool.

Trolleys represent a small fraction of smokehouse capital expenditure and shipping cost. Under-specifying trolley count is one of the most reliably correctable bottlenecks in smokehouse line planning. We recommend ordering trolleys as part of the initial smokehouse package to ensure dimensional matching and consolidated freight.

Integration with the Complete Processing Line

The hanging trolley operates as the final material-handling step before the smokehouse chamber. A complete line feeding the smokehouse typically includes:

• Brine injection machine — injects cure and marinating brine into raw cuts upstream of tumbling
• Vacuum meat tumbler — massages and tenderises injected product under vacuum for improved uptake and texture
• T200 meat cart lifter — transfers tumbled product from the material cart to the filler or hanging station
• YC-200 stainless-steel material cart — moves product between all upstream workstations
• Hanging trolley (this unit) — loads the smokehouse chamber and holds product in position throughout the cook cycle

Ordering the hanging trolley, material cart, lifter, and smokehouse as a complete package ensures dimensional compatibility, simplifies spare-parts management, and enables consolidated container shipping.

Cleaning and Maintenance After Each Cook Cycle

Smoke condensates, fat drips, and protein residues accumulate on trolley surfaces during every cook cycle. A consistent post-cycle cleaning protocol extends trolley service life and prevents flavour or colour carryover between batches.

• After each cycle: Allow the trolley to cool to safe handling temperature. Remove all product. Rinse frame and bars with hot water immediately to prevent fat from solidifying on surfaces.
• Daily cleaning: Wash with a food-safe alkaline cleaner (dilute caustic-based CIP detergent per manufacturer specification). Rinse thoroughly with clean water. Allow to air-dry or towel-dry before reuse.
• Weekly descaling: Soak or spray horizontal bars with a dilute citric or phosphoric acid solution to remove mineral scale from steam condensate. Rinse and dry before returning to service.
• Periodic structural inspection: Check all bar welds, castor brackets, and frame joints for cracks or loosening. The combination of heat cycling, condensate, and smoke residue accelerates fatigue at weld points.
• Bar replacement: Individual horizontal bars are available as spare parts. A cracked or bent bar can be replaced without replacing the full trolley frame.

Pertanyaan yang Sering Diajukan

Is this trolley compatible with smokehouse models from other manufacturers?

The standard frame dimensions (1,030 x 1,020 x 1,860 mm) are widely used in the industry. Compatibility with third-party smokehouses depends on their chamber floor guide spacing and door clearance. Provide your smokehouse internal chamber dimensions and we will confirm.

Can the bar spacing be customised for whole-muscle products?

Yes. Bar spacing, bar count, and overall frame height can be configured at the order stage to suit specific product dimensions. Standard customisations add no extra lead time.

How many sausage links fit on one trolley?

Product count depends on diameter, length, and bar spacing. A standard configuration with 8 bar rows, each accommodating 15–20 loops of 25 mm Frankfurt-style sausage, yields approximately 960–1,280 individual links per trolley.

How long do the hanging trolleys last?

Under consistent cleaning and normal operating conditions, SUS304 stainless-steel trolleys typically remain serviceable for five or more years. Horizontal bars and castors are the most common wear items and are available as replacement parts.

Are replacement bars and castors available?

Yes. Replacement horizontal bars, castor assemblies, and bar end-cap components are stocked as spare parts. Specify your trolley’s bar diameter and overall bar length when ordering replacements.
