Description
| Traction Unit — Technical Specifications | |
|---|---|
| Model | XDQY |
| Power | 0.8 kW |
| Compatible Casing Diameter | Φ15–Φ50 mm |
| Traction Speed | 0–2.3 m/s |
| Traction Centre Height | 970–1010 mm |
| Machine Dimensions (L×W×H) | 700 × 680 × 1270 mm |
| Machine Weight | 200 kg |
| Drive | Nylon gear (low noise, low vibration) |
| Casing Detection | Automatic casing cutoff unit (structure detection) |
| Application Scope | Small and medium meat processing, multi-variety production |
| Construction | SUS304 stainless steel throughout |
| Hanging Trolley — Technical Specifications | |
|---|---|
| Max Single-Side Hanging Length | 520 mm |
| Trolley Power | 1.5 kW |
| Trolley Dimensions (L×W×H) | 2595 × 630 × 1041 mm |
| Performance | High reliability, smooth running, high precision, extended service life |

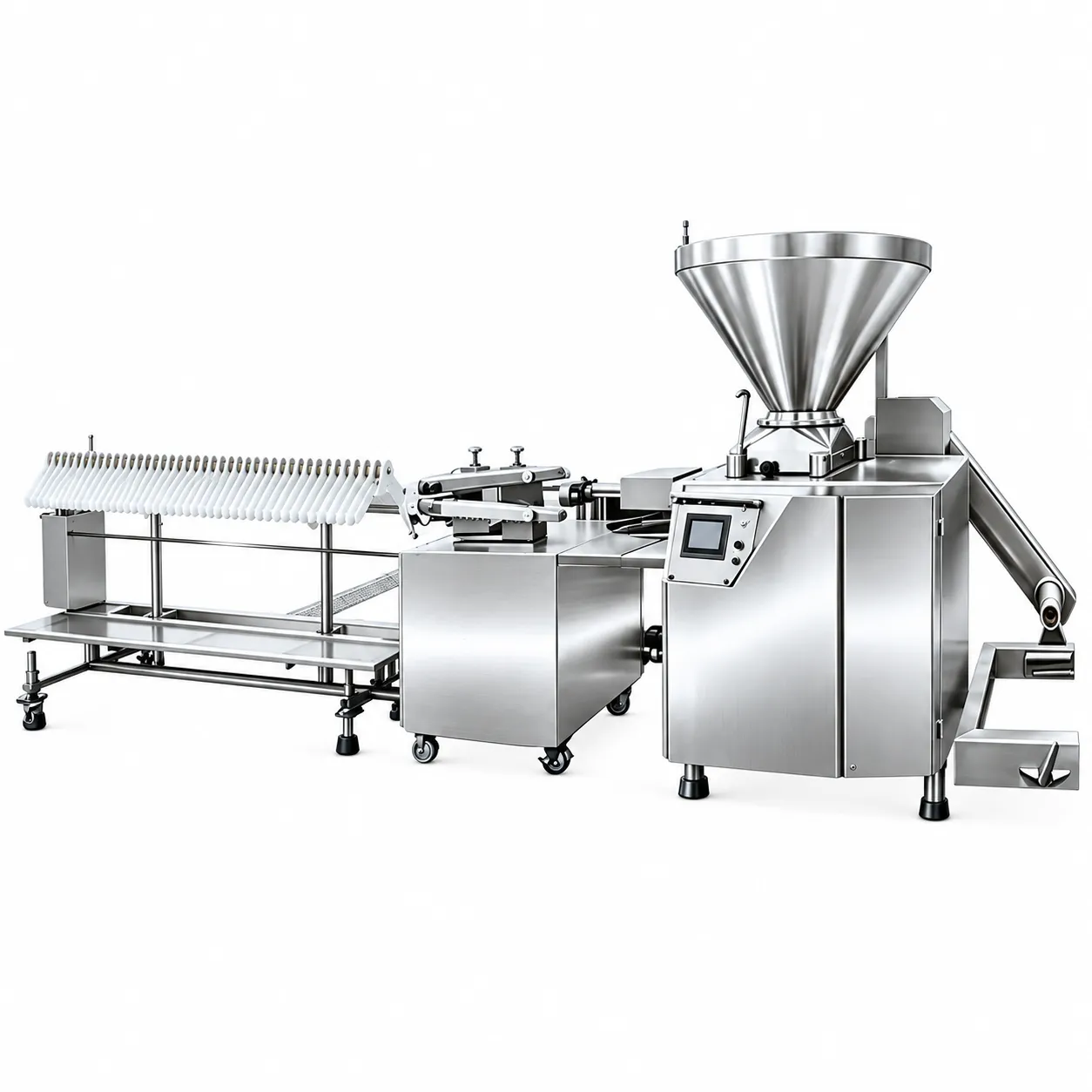

Automatic Sausage Hanging Line with Casing Traction Unit
The XDQY Automatic Sausage Hanging Line with Casing Traction Unit is an auxiliary filling device that provides constant-speed casing traction during the filling cycle and automatic hanging of filled sausage links — without an integrated string-tying or twist-linking function. At 0.8 kW total power and 200 kg machine weight, it represents the lowest-infrastructure entry point into automated sausage hanging in our production line range, and is designed specifically for small and medium-sized meat processing operations and facilities running multiple product types per shift.
As an auxiliary device, the XDQY works alongside any existing vacuum or piston filling machine by providing controlled back-pressure during filling and collecting the filled product for automatic hanging. Facilities that already operate standalone filling machines can add the XDQY as a downstream addition without replacing or modifying their filling equipment — a significantly lower investment than a complete turnkey line.
Casing Traction: The Engineering Principle Behind Filling Density Consistency
Filling density inconsistency — variation in product weight and texture between the first and last portions from a single casing sleeve — is one of the most common quality problems in sausage production facilities that use standalone filling machines without downstream traction control. The cause is straightforward: as product accumulates inside the casing, the weight of the filled section reduces the back-pressure the casing exerts on the filling nozzle. The filling machine, operating at constant speed, overfills the later portions of the casing sleeve when this back-pressure drops.
The XDQY traction unit counteracts this by applying a controlled counter-tension to the casing that is held constant throughout the fill stroke at the set traction speed (0–2.3 m/s). The operator sets the traction speed to match the filling machine’s output rate, establishing a consistent back-pressure from the first portion to the last. The result is a measurably more consistent product density — fewer underweight or overweight portions, more consistent texture at slicing, and reduced giveaway on weight-marked retail products.
Automatic Casing Structure Detection
The XDQY is fitted with an automatic casing cutoff unit that continuously monitors the casing structure during production. The detection unit identifies abnormal conditions — the end of a casing sleeve before the operator has replaced it, an over-stretched section, or a structural fault in the casing material — and triggers an automatic response to prevent uneven filling or excess material output past the casing end.
In facilities running multiple casing sleeves per shift, this detection function recovers a meaningful amount of production time that would otherwise be spent monitoring casing end-points manually. It also prevents the product waste that occurs when filling continues into an empty or burst casing without detection — a failure mode that can deposit product on the traction rollers and require an unplanned cleaning stop.
Automatic detection benefit: Prevents overfilling past casing end, reduces product waste, and eliminates unplanned cleaning stops from burst or empty casing incidents.
Nylon gear drive benefit: Low vibration and noise at the traction station; no metal gear contamination risk at the product zone; no lubrication required at the gear interface.
Nylon Gear Drive: Low Noise and Food Safety
The XDQY uses a nylon gear drive system for the traction rollers rather than a metal gear train. In a casing traction application, the drive operates continuously in close proximity to the product zone, and the gear material choice affects both the operating environment and food safety compliance. Nylon gears produce significantly less vibration and operating noise than metal gear pairs at the traction speeds this application requires — a relevant factor in production environments where the traction station is adjacent to other workstations.
From a food safety perspective, nylon gears eliminate the metal contamination risk from gear wear debris that is an HACCP consideration with metal gear drives in close proximity to food contact zones. The nylon material does not require the lubrication that metal gear trains at this scale need, removing the risk of lubricant contamination at the drive interface.
Suitable Users and Applications
- Small and medium meat processing facilities producing 200–1,000 kg per shift that need filling consistency and automatic hanging without the capital cost of a complete integrated line
- Multi-variety production operations running different product types per shift, where the lower setup and cleaning time of an auxiliary hanging unit is more efficient than a full turnkey line
- Facilities that already own standalone filling machines and want to add casing traction and hanging capability without replacing existing equipment
- Fresh sausage production in the Φ15–Φ50 mm casing diameter range: frankfurters, cocktail sausages, fresh pork links, and similar standard calibre products
- Operations evaluating automated hanging before committing to a complete integrated line investment — the XDQY can be upgraded to a full line configuration at a later stage
Note: The XDQY provides casing traction and hanging only — it does not include string-tying or twist-linking. For integrated tying and hanging, see the String-Tying & Hanging Line or the YZG-1200 Linking & Hanging Line.
About the Manufacturer
Founded in 1999, Shijiazhuang Sunshine Machinery operates a production facility equipped with CNC machining centres and dedicated quality-control processes for food machinery manufacturing. Over 25 years, we have supplied complete sausage production lines to processing facilities across South America, Southeast Asia, and the Middle East. Every line undergoes an 8-hour full-load test before shipment, and our South American entity in Limeira, São Paulo provides regional after-sales support.
Our mandatory pre-shipment protocol requires every line to operate at 100% rated capacity for eight uninterrupted hours. This burn-in test eliminates infant-failure risk and confirms that the filling, portioning, and hanging stages are correctly synchronised before crating. Test logs are available.
Our standard warranty is one year from arrival, covering all line sub-systems: filling unit, portioning controls, tying or twisting mechanism, and hanging conveyor. A pre-packed set of quick-wear replacement parts ships with every order to support first-year maintenance without waiting on parts.
Frequently Asked Questions
What filling machines is the XDQY compatible with?
The XDQY is compatible with all major vacuum filling machines and piston fillers producing sausage in the Φ15–Φ50 mm casing diameter range. No modification to the upstream filling machine is required — the traction unit connects at the filling nozzle output. Please confirm your existing filling machine model when enquiring to verify the traction inlet configuration.
Does the XDQY include string-tying or twist-linking?
No. The XDQY provides casing traction and automatic hanging only. For string-tying, see the Automatic String-Tying & Hanging Line. For twist-linking, see the YZG-1200 Sausage Linking & Hanging Line. The XDQY is typically used in combination with an upstream clipping machine or a downstream twist-linker for products that require link portioning.
How is traction speed set and adjusted?
Traction speed is adjustable from 0 to 2.3 m/s and is set by the operator to match the filling machine’s output rate and the casing diameter and wall thickness of the product being run. There is no universal setting — please provide your filling machine’s operating speed, casing diameter, and product type when enquiring for initial configuration guidance.
Can the traction centre height be adjusted to match my filling machine?
Yes. The traction centre height is adjustable between 970 and 1010 mm to match the nozzle height of most commercial filling machines without requiring shims or platform modifications. Confirm your filling machine’s nozzle height when enquiring.
Is this machine suitable for large-diameter casings above Φ50 mm?
The XDQY is designed and optimised for the Φ15–Φ50 mm casing diameter range, which covers standard fresh sausage and frankfurter calibres. For large-diameter applications above Φ50 mm, please contact us to discuss the appropriate equipment configuration.
